One of the major steps in design of steel structures in STAAD Pro is defining the Design Parameters.
Two types of parameters we need to define while designing steel structures. One set is used for strength design of structures and another for serviceability design. In strength design, we need to define the effective lengths of structural members with respect to their local bending axes as one of the parameters. Effective length of member in its local Z axis of bending is defined as LZ and in Y axis of bending it is defined as LY. Other parameters such as UNL or UNT & UNB can be considered same as LY OR one can refer to the respective Design Codes.
To find out the effective length of each and every member in STAAD is a tough job and time consuming too. And the definitions of these lengths may vary depending on the judgment of the person because he/she has to judge the lengths based on the geometry of the structure. The correct method to define these lengths would be based on the Bending Moment/Shear Force Diagram. One can judge the effective length of the member with respect to change in slope of Bending Moment Diagram.
What if we get such a tool, which can give the effective lengths of the members with accurate judgment???
Here is the tool developed by CE Intelsys to find out the effective lengths (LZ & LY) of the members based on their Bending Moment/Shear Force Diagram Pattern.

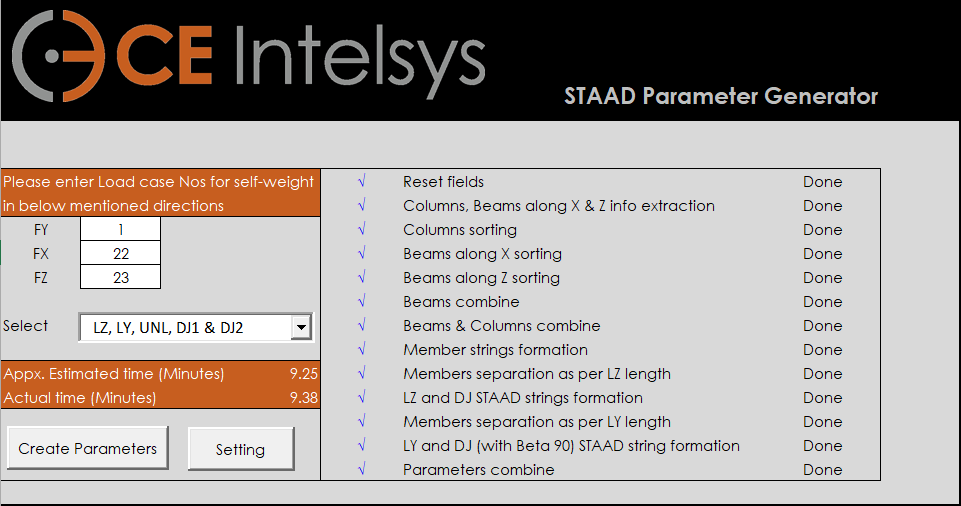

User required to analyse the structure, fill few information in the Excel Tool and click on the Create Parameters button. Parameters will be generated within few minutes and to a high level of accuracy. It reduces lot of efforts and time.
Download 15 Days Trail version of the product, register and activate on your PC today. (see, how to register and activate the Product)
No credit card details required to be submitted for Trial Version. After 15 days of trial period, you can choose the plan suitable for you anytime and activate it again.
Facing problem in downloading? Please contact us for help.
*Updates related to compatibility issue with STAAD Pro version.
Read License Agreement and License Agreement FAQs
