Finding out the effective area under the foundations subjected to large moments is a very tedious job. Effective area below the foundation with only uniaxial moment can be found out with help of simple banding theory. In actual engineering problems we rarely face the case of foundations which are truly concentrically loaded or with only uniaxial moment. Analysis of foundation subjected large biaxial moments can be done with numerical methods. Most of the engineers use K value mentioned in Teng's chart presented by Wayne C. Teng in his book "Foundation Design" to find out the maximum pressure.

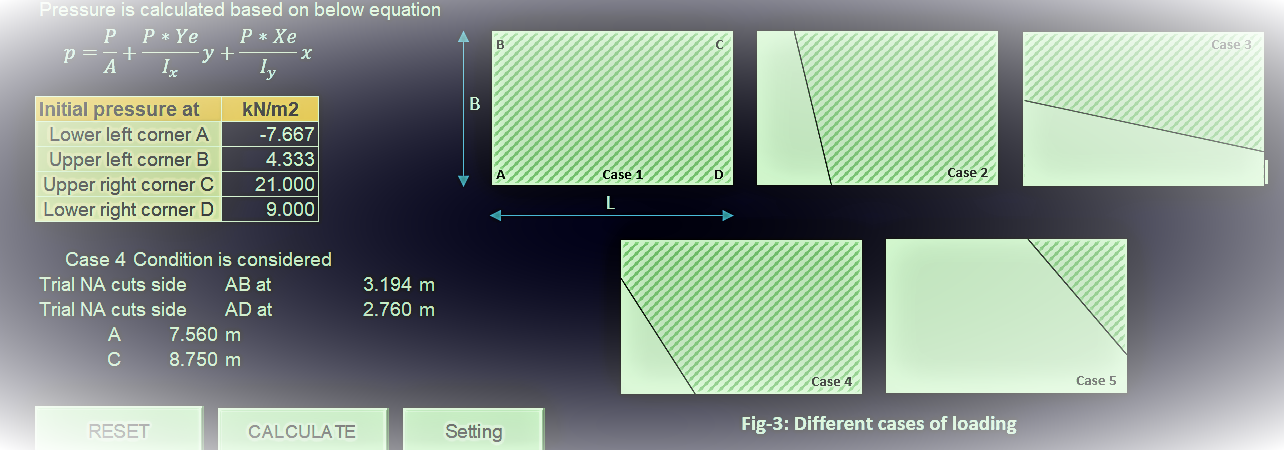

CE Intelsys have developed a tool based on the numerical method described by Ralph B. Peck in his book "Foundation Engineering". This tool calculates the base pressure and actual area under compression below foundation with maximum accuracy and within few seconds.

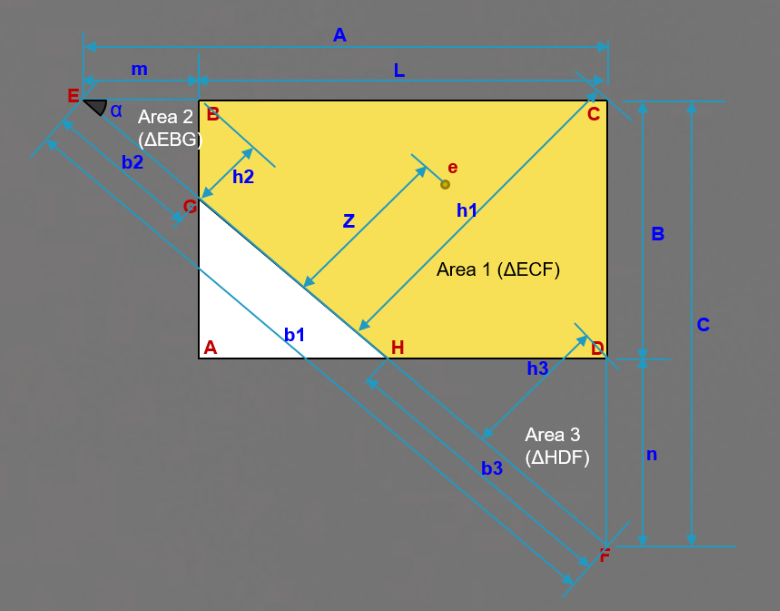

This Utility performs the iterative calculation to find out the base presure based on the figure shown below. For more details about how this Utility works, see the article from www.civilnstructural.com.
Download 15 Days Trail version of the product, register and activate on your PC today. (see, how to register and activate the Product)
No credit card details required to be submitted for Trial Version. After 15 days of trial period, you can choose the plan suitable for you anytime and activate it again.
Facing problem in downloading? Please contact us for help.
*Updates related to compatibility issue with system version.
Read License Agreement and License Agreement FAQs
Qutaiba Hameedi. Technical Manager; Union Precast Factory; Doha, Qatar.
Product using : Foundation Base Pressure Calculation Tool.
Product Rating :
"GOOD PRODUCT, TIME SAVING & RELIABLE OUTPUT."
